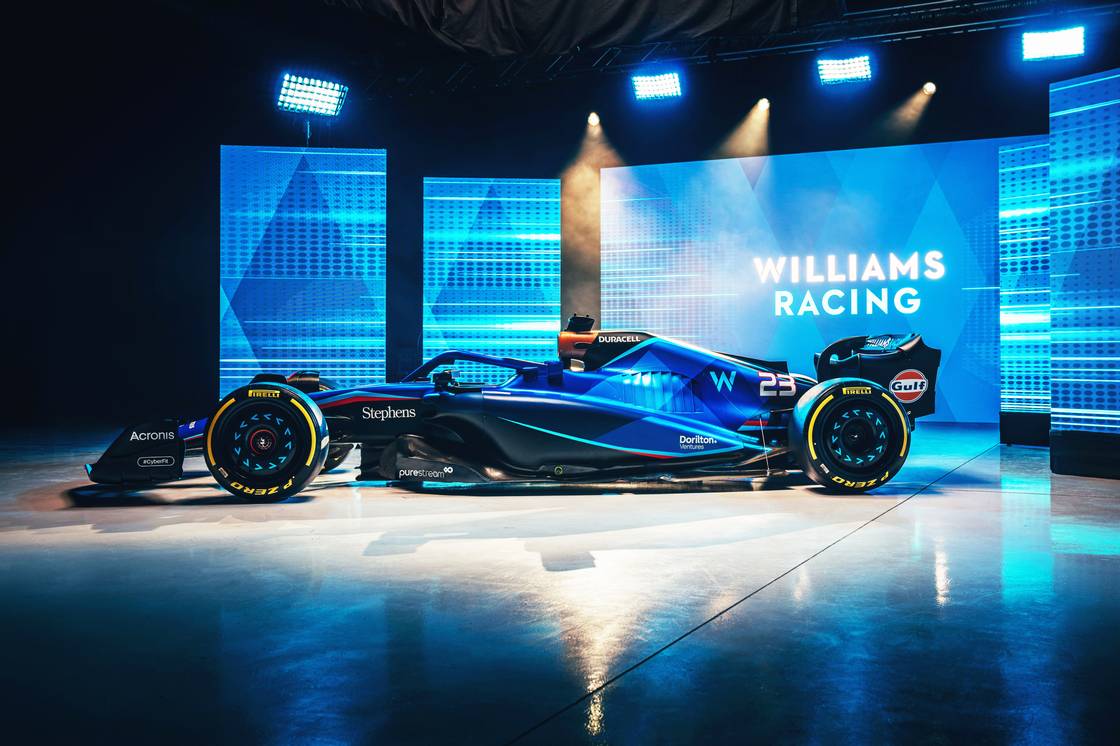

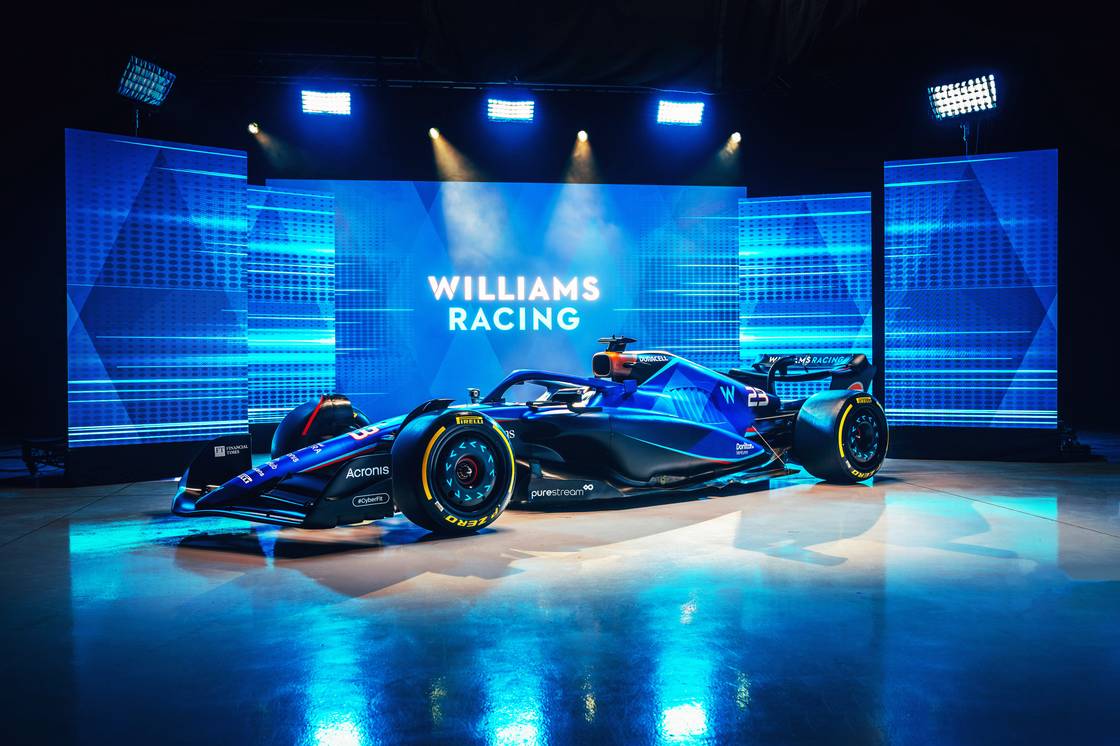

FW45

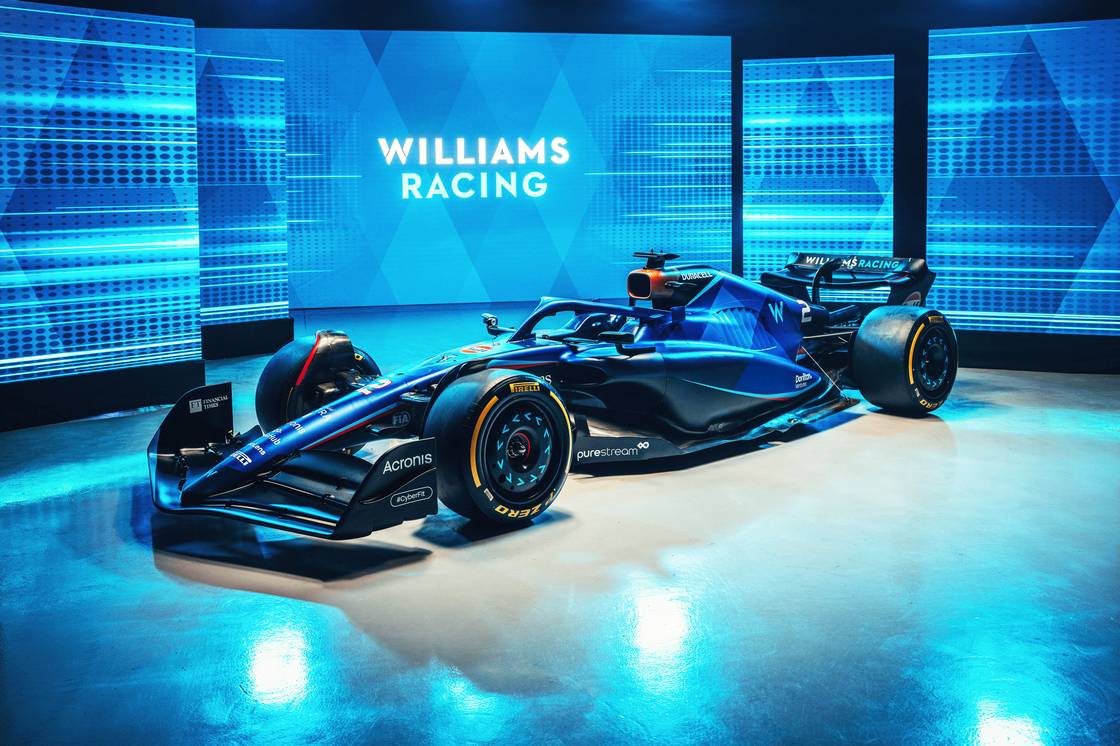

The Williams FW45 is a Formula One racing car designed and constructed by Williams to compete in the 2023 Formula One World Championship. The car was driven by Logan Sargeant and Alexander Albon in their first and second years with the team respectively.
From Wikipedia, the free encyclopedia [+]
Images
Technical Specification
| Chassis construction | Monocoque construction laminated from carbon epoxy and honeycomb surpassing FIA impact and strength requirements |
| Front suspension | Double wishbone, push-rod activated springs and anti-roll bar |
| Rear Suspension | Double wishbone, pull-rod activated springs and anti-roll bar |
| Transmission | Mercedes-AMG F1: eight-speed forward, one reverse unit with carbon fibre maincase. Sequential, semi-automatic, hydraulic activation gear selection |
| Clutch | Carbon multi-plate |
| Dampers | Hydraulic |
| Wheels | F1 Standard Supply Component |
| Tyres | Pirelli Fronts: 305/720-18, Rears: 405/720-18 |
| Brake system | Brembo 6 piston front and rear callipers, with carbon discs and pads |
| Electronics systems | FIA SECU standard electronic control unit |
| Cooling system | Aluminium oil, water, charge air, ERS and gearbox coolers |
| Cockpit | Six-point driver safety harness with 75mm shoulder straps & system, removable automatically formed carbon fibre seat |
| Power Unit | Mercedes-AMG F1 M14 E PERFORMANCE |
| Fuel injection | High-pressure direct injection (max 500 bar, one injector/cylinder), Pressure charging Single-stage compressor and exhaust turbine on a common shaft, Max rpm exhaust turbine 125,000 rpm |
| ERS | Mercedes-AMG HPP |
| Weight | FIA Minimum |
| Dimensions | Overall height: 970mm, overall width: 2000mm |
Results
| Year | Round | Country | Driver | Grid Pos | Finish Pos | Result |
|---|---|---|---|---|---|---|
| 2023 | 1 | Bahrain Grand Prix | Alexander Albon | 15 | 10 | Finished |
| 2023 | 1 | Bahrain Grand Prix | Logan Sargeant | 16 | 12 | +1 Lap |
| 2023 | 2 | Saudi Arabian Grand Prix | Alexander Albon | 17 | 19 | Brakes |
| 2023 | 2 | Saudi Arabian Grand Prix | Logan Sargeant | 20 | 16 | Finished |
| 2023 | 3 | Australian Grand Prix | Alexander Albon | 8 | 19 | Accident |
| 2023 | 3 | Australian Grand Prix | Logan Sargeant | 18 | 16 | Collision |
| 2023 | 4 | Azerbaijan Grand Prix | Alexander Albon | 12 | 12 | Finished |
| 2023 | 4 | Azerbaijan Grand Prix | Logan Sargeant | 14 | 16 | Finished |
| 2023 | 5 | Miami Grand Prix | Alexander Albon | 11 | 14 | Finished |
| 2023 | 5 | Miami Grand Prix | Logan Sargeant | 20 | 20 | +1 Lap |
| 2023 | 6 | Monaco Grand Prix | Alexander Albon | 13 | 14 | +1 Lap |
| 2023 | 6 | Monaco Grand Prix | Logan Sargeant | 16 | 18 | +2 Laps |
| 2023 | 7 | Spanish Grand Prix | Alexander Albon | 18 | 16 | +1 Lap |
| 2023 | 7 | Spanish Grand Prix | Logan Sargeant | 20 | 20 | +1 Lap |
| 2023 | 8 | Canadian Grand Prix | Alexander Albon | 9 | 7 | Finished |
| 2023 | 8 | Canadian Grand Prix | Logan Sargeant | 18 | 20 | Engine |
| 2023 | 9 | Austrian Grand Prix | Alexander Albon | 10 | 11 | Finished |
| 2023 | 9 | Austrian Grand Prix | Logan Sargeant | 18 | 13 | +1 Lap |
| 2023 | 10 | British Grand Prix | Alexander Albon | 8 | 8 | Finished |
| 2023 | 10 | British Grand Prix | Logan Sargeant | 14 | 11 | Finished |
| 2023 | 11 | Hungarian Grand Prix | Alexander Albon | 16 | 11 | +1 Lap |
| 2023 | 11 | Hungarian Grand Prix | Logan Sargeant | 20 | 18 | Retired |
| 2023 | 12 | Belgian Grand Prix | Alexander Albon | 15 | 14 | Finished |
| 2023 | 12 | Belgian Grand Prix | Logan Sargeant | 18 | 17 | Finished |
| 2023 | 13 | Dutch Grand Prix | Alexander Albon | 4 | 8 | Finished |
| 2023 | 13 | Dutch Grand Prix | Logan Sargeant | 10 | 20 | Accident |
| 2023 | 14 | Italian Grand Prix | Alexander Albon | 6 | 7 | Finished |
| 2023 | 14 | Italian Grand Prix | Logan Sargeant | 15 | 13 | Finished |
| 2023 | 15 | Singapore Grand Prix | Alexander Albon | 14 | 11 | Finished |
| 2023 | 15 | Singapore Grand Prix | Logan Sargeant | 18 | 14 | Finished |
| 2023 | 16 | Japanese Grand Prix | Alexander Albon | 13 | 16 | Collision damage |
| 2023 | 16 | Japanese Grand Prix | Logan Sargeant | 0 | 17 | Collision damage |
| 2023 | 17 | Qatar Grand Prix | Alexander Albon | 13 | 13 | Finished |
| 2023 | 17 | Qatar Grand Prix | Logan Sargeant | 15 | 18 | Illness |
| 2023 | 18 | United States Grand Prix | Alexander Albon | 15 | 9 | Finished |
| 2023 | 18 | United States Grand Prix | Logan Sargeant | 16 | 10 | Finished |
| 2023 | 19 | Mexico City Grand Prix | Alexander Albon | 14 | 9 | Finished |
| 2023 | 19 | Mexico City Grand Prix | Logan Sargeant | 19 | 16 | Retired |
| 2023 | 20 | São Paulo Grand Prix | Alexander Albon | 13 | 19 | Collision |
| 2023 | 20 | São Paulo Grand Prix | Logan Sargeant | 19 | 11 | +1 Lap |
| 2023 | 21 | Las Vegas Grand Prix | Alexander Albon | 5 | 12 | Finished |
| 2023 | 21 | Las Vegas Grand Prix | Logan Sargeant | 6 | 16 | Finished |
| 2023 | 22 | Abu Dhabi Grand Prix | Alexander Albon | 14 | 14 | Finished |
| 2023 | 22 | Abu Dhabi Grand Prix | Logan Sargeant | 20 | 16 | Finished |
