FW47

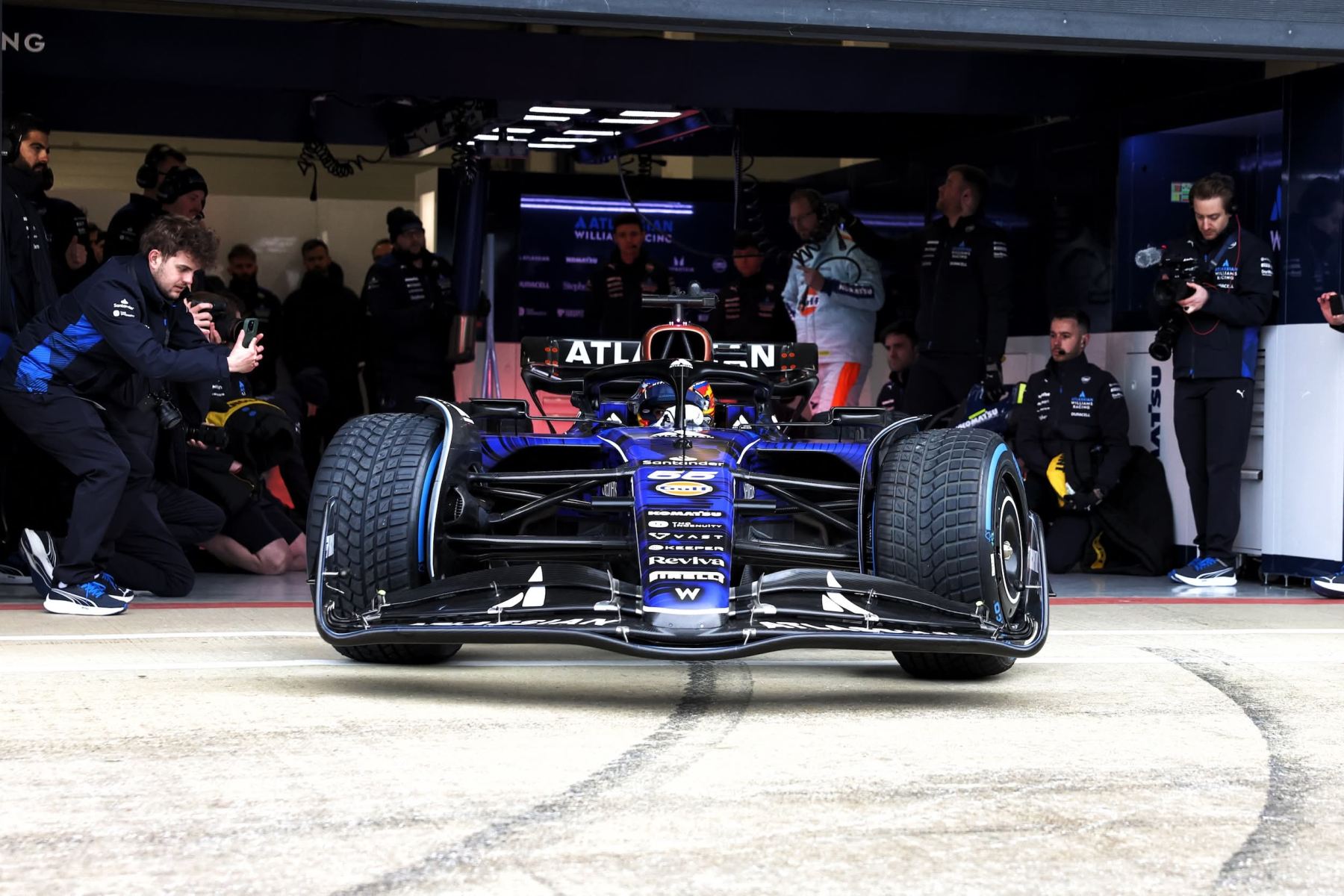

The Williams FW47 is a Formula One racing car designed and constructed by Williams set to compete in the 2025 Formula One World Championship. The car will be driven by Alexander Albon and Carlos Sainz Jr. The car was launched on 14 February 2025 at Silverstone Circuit in a one-off camo livery; it was driven by Sainz. The 2025 livery will be unveiled 4 days later at the F1 75 Live event at The O2 Arena with the other teams.

Creative Commons License From Wikipedia, the free encyclopedia [+]

Images

0000149983_HiRes_09TMASS0T6DUDT0WCD5JQ036F276
0000149979_HiRes_0FLCNLT0WYOI1E0X2T1UT0GOCZUL
0000149980_HiRes_075A4UQ0JIACWS0BIC7UK0NETVAL
0000149976_HiRes_0IJG2OW0UC5RES0TOFOAG03PSS21
0000149967_HiRes_03TOGXY0OKD9PJ0MXH9GU06VXT62
0000149958_HiRes_02MDXDP0XLLQNA0WX12FF0T0AOA4
0000149912_HiRes_0OQT14S0FP0BMO0X0J5R50M886BK
0000149938_HiRes_0I71HV80VN8IWZ0JI7M7D0G4HRKA
0000149937_HiRes_074HT6R0CGAP5C0RLEJ9Z0SPOIZC
0000149934_HiRes_05RD1ZX07XAKKZ0187UAG01SF1SM
0000149953_HiRes_0SJEHKP0UUI31904SQKSP0YFY3XA

[Show slideshow]
1 2

Technical Specification

Chassis constructionMonocoque construction laminated from carbon epoxy and honeycomb surpassing FIA impact and strength requirements
Front suspensionDouble wishbone, push-rod activated springs and anti-roll bar
Rear suspensionMercedes-AMG F1 double wishbone, pushrod activated springs and anti-roll bar
TransmissionMercedes-AMG F1: eight-speed forward, one reverse unit with carbon fibre maincase. Sequential, semi-automatic, hydraulic activation gear selection
ClutchCarbon multi-plate
DampersHydraulic
WheelsF1 Standard Supply Component
TyresPirelli Fronts: 305/720-18, Rears: 405/720-18
Brake systemBrembo 6 piston front and rear callipers, with carbon discs and pads
Electronics systems FIA SECU standard electronic control unit
Cooling systemAluminium oil, water, charge air, ERS and gearbox coolers
CockpitSix-point driver safety harness and removable custom-formed carbon fibre seat
Power UnitMercedes – AMG F1 M16 E PERFORMANCE
Fuel injectionHigh-pressure direct injection (max 500 bar, one injector/cylinder), pressure charging single-stage compressor and exhaust turbine on a common shaft, max rpm exhaust turbine 125,000 rpm
ERSMercedes-AMG HPP
Weight800kg (FIA Minimum)
DimensionsOverall height: 970mm, overall width: 2000mm

Results

YearRoundCountryDriverGrid PosFinish PosResult
